Vertical Glass Washing Machine With Three Pairs Brush

Model Number : CAGW2025

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 30 sets per month

Delivery Time : 25 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Glass Washing and Drying

Max washing glass size : 2000x2500mm

Washing glass thickness : 3-19mm

Washing type : vertical

Washing brush : three pairs

Parts material : Stainless steel or copper

Machine : Insulating Glass Production Line Vertical Glass Cleaning Machine with Glass Washing and Drying Function

Washing speed : 8m/min

Contact Now

Vertical Glass Washing Machine Insulating Glass Machine

Vertical Glass Washing Machine With Three Pairs Brush

Product Description

Care high speed vertical glass washing machine is the key facility of automatic insulating glass production line. The washer have functions of glass cleaning, glass drying and testing etc.

Vertical Glass Washing Machine With Three Pairs Brush

Functions

1, Europe design concept, easy and intelligent operation;

2, World famous brands of key components, ensure stable operation and long service life;

3, Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass;

4, Large glass processing scale with high speed, various models and customization available;

5, With functions of glass transferring, glass washing, glass drying and glass checking;

6,Three pairs of high quality washing brushes, suitable for Low E glass washing;

Paramenters

Parameters of Care high speed vertical glass washing machine
Power supply		380V 50Hz 3P (or customized)
Total power		12KW
Process glass scale	Max glass sheet	2000×2500mm
	Min glass sheet	300×400mm
	Original glass thickness	3~18mm
Working speed	Washing speed	8m/min
Note: other processing scale available or customized.

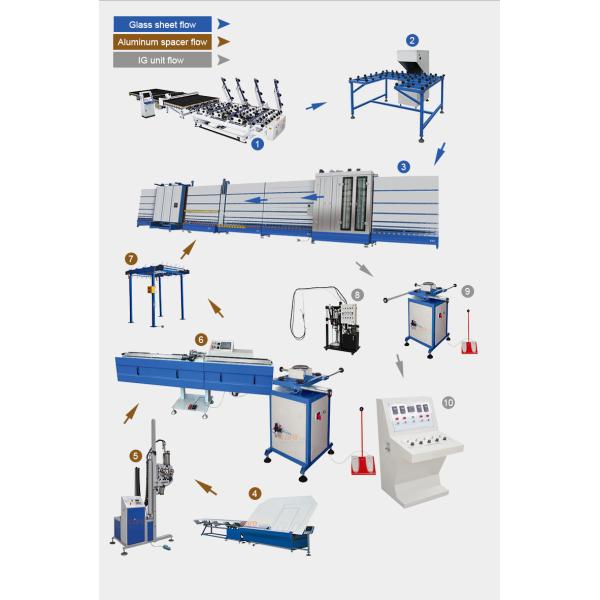

Product Flow

Vertical Glass Washing Machine With Three Pairs Brush
