Full Automatic Glass Processing Machines for Double Glazed Window Glass Sealing Machine Line with Two Component Gluing
Full Automatic Glass Processing Machines for Double Glazed Window Glass Sealing Machine Line with Two Component Gluing is used for the secondary sealant of insulating glass units.
1. Whole machine adopt man-machine interface,the operation is more convenient and intuitionistic with the simplified thinking design interface.
2. The glass edge and corner is full without air bubbles,smooth surface,no need to pare the corner under the conditionthat the glass are cut levelly and without dislocation after combined.
3. High automation,high efficiency,suitable for glass deep processing enterprise to use.
4. Using two sets of independent sealant supply system (including the mixing device).two dinds of sealants switch in one-dey operation easily.
5. The third section can prestore glass to improve the efficiency efficiently.
6. Servo control system adopts world famous brand (Yaskawa).The performance is stable.
| Model | | CAAS2030 |
| Power supply | 380V 50Hz 3P (or customized) |
| Total power | | 12KW |
| Process glass scale | Max glass sheet | 2000x3000mm |
| Min glass sheet | 260×400mm |
| Original glass thickness | 3~18mm |
| IG glass sheet thickness | 12-48mm |
| Insulation thickness | 6-24mm |
| Gluing ability | Gluing depth | 3-18mm |
| Gluing pressure | 35MPa |
| Working speed | Gluing speed | 5-40m/min |
| Dimension | L×W×H (mm) | 9500x3000x2750 |
| Note: various model with other processing scal customized available. |

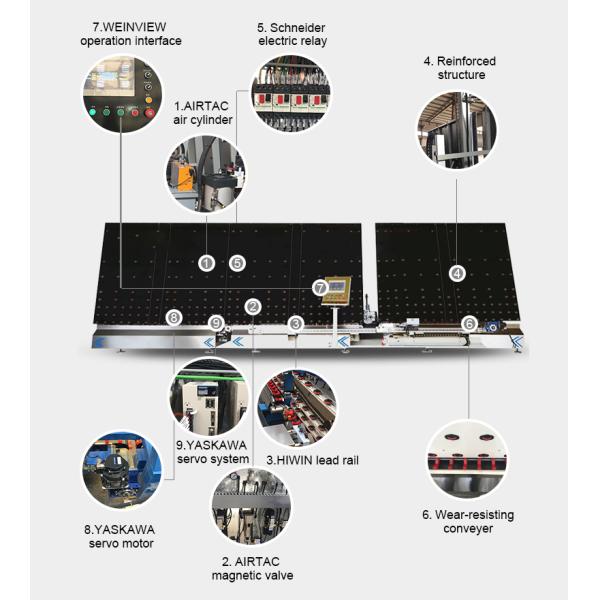

Product detail
1, YASKAWA servo system and world famous brands of key components, ensure stable operation and long service life;
2, PLC controlling system, touching screen operation;
3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);
4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;
5, Timing automatic glue diecharging, avoid glue blocking;
6, V-type rubber belt for transportation, easily replaced once worn;
7, Programmable memory function, one key touching to different size of glass sheet processing;
8, Compact outlook design, saving working area;
